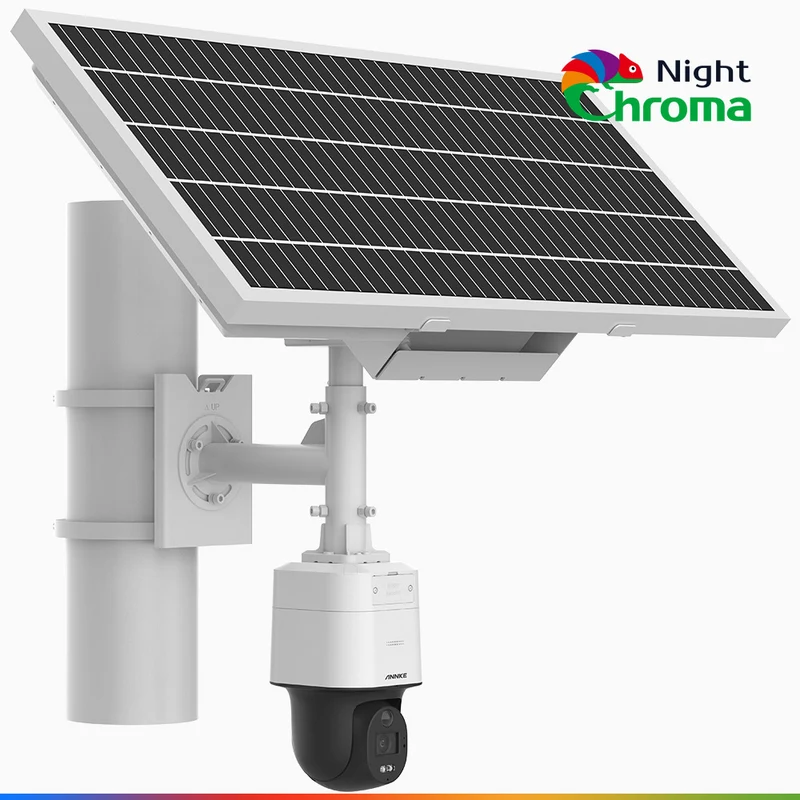

SPT400 - 4MP 4G LTE Solar-powered Security PT Camera, 340° Pan & 105° Tilt, Acme Color Night Vision, 100% Wire-Free, 40W Solar Panel, Built-in Battery, Two-Way Audio

ANNKE SPT400

Powered by The Sun, Secure Anytime & Anywhere

4G

LTE Cellular
Works without WiFi

Power

Wire-Free
Solar Panel & Battery

4MP

Super HD
View All Clearly

PT

340° Pan & 105° Tilt
More Areas Covered

Designed & Crafted for Special Scenarios

The solar-powered 4G camera is suitable for diverse applications, especially in areas where it is impractical to install wired networks and electrical supply lines. It is particularly useful in challenging environments that demand stable device performance. This camera finds utility across a wide range of industries, including construction sites, farm monitoring, temporary locations, electric power cable lines, water and river systems, oil pipelines, and forests.

24/7 Color Imaging to Capture Every Moment

Upgrade your imaging experience with an impressive resolution of 2688 × 1520, the 4MP camera excels in capturing high-quality images even in challenging lighting conditions. With built-in white supplement lights, the solar camera has color night vision up to 30m which allows you to pick up more details clearly even at night, delivering colorful and sharp videos even at low-light conditions.

340° Pan & 105° Tilt - Get More Areas Covered

Say goodbye to the limitations of fixed-position cameras that only capture a narrow field of view. The PT camera provides you with complete control over what you see. Whether you're monitoring a large outdoor area, or managing a farm space, this versatile camera can effortlessly scan the surroundings and capture critical details from various perspectives.

100% Wire-Free, No Wiring Hassles

Built in chargeable lithium battery and 40W solar panel, it ensures that you never have to worry about battery life or electricity shortages. It remains fully charged at all times, enabling a completely wire-free outdoor security experience. Power is no longer a problem.

Works Perfectly with No WiFi

Compatible with LTE-TDD/LTE-FDD/WCDMA/GSM 4G networks, the outdoor-ready 4G LTE camera can perfectly work in remote and faraway areas without wireless or PoE networking. Stay connected and capture every moment with ease, thanks to its support for Micro SIM cards, enabling seamless mobile communication.

Real-Time Security - Two-Way Audio

This two-way audio feature enables you to communicate directly with individuals near the camera, creating a powerful deterrent against intruders or suspicious activities. By using the microphone and speaker built into the camera, you can issue warnings, ask questions, or provide instructions in real-time.

Local Storage, No Extra Fees

Stand-Alone with no hub needed. The outdoor camera comes with 64GB of eMMC capacity and a MicroSD card slot (support TF card up to 256GB). Recoding more clips without worrying frequently data overwriting or monthly cloud fees.

Experience Stunning Image Quality

This camera boasts an impressive 120 dB true WDR for unparalleled dynamic range, 3D DNR for noise reduction, and advanced BLC & HLC features for optimal exposure control. Enjoy crystal-clear visuals, even in challenging lighting conditions. Elevate your viewing experience with our state-of-the-art technology.

Specification

Download I81HP Specification

Available Carriers

What's in the Box

1X Camera

1X Connecting bracket

1X Pole mount connector

1X Solar Panel

1X Battery

1X Screws & Accessories

Camera

Image Sensor1/3" Progressive Scan CMOS	Max resolution2688 × 1520
Main Stream50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)	Substream50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
Video Bitrate32 Kbps to 8 Mbps	Angle of ViewHorizontal FOV: 75°, Vertical FOV: 40°, Diagonal FOV: 89°
DORID: 82 m, O: 32 m, R: 16 m, I: 8 m	Lens4 [email protected]
Video CompressionMain stream: H.265/ H.264 Sub-stream: H.265/H.264/MJPEG H.264+ and H.265+: main stream supports under performance mode	Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
Day & Night24/7 color imaging	Angle AdjustmentPan: 0° to 340°, tilt: -5° to 105°
Supplement Light TypeWhite Light	Supplement Light RangePerformance mode: up to 30 m, proactive mode: up to 10 m
Basic EventMotion detection, video tampering alarm, exception	Image EnhancementBLC, HLC, 3D DNR
Wide Dynamic Range120 dB WDR	Built-in MicrophoneYes, record with audio
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3	Built-in SpeakerYes, two way audio,  audible warning
ProtocolsTCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP	APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI

Image Sensor1/3" Progressive Scan CMOS

Main Stream50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Video Bitrate32 Kbps to 8 Mbps

DORID: 82 m, O: 32 m, R: 16 m, I: 8 m

Video CompressionMain stream: H.265/ H.264 Sub-stream: H.265/H.264/MJPEG H.264+ and H.265+: main stream supports under performance mode

Day & Night24/7 color imaging

Supplement Light TypeWhite Light

Basic EventMotion detection, video tampering alarm, exception

Wide Dynamic Range120 dB WDR

Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3

ProtocolsTCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP

Max resolution 2688 × 1520

Substream 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

Angle of View Horizontal FOV: 75°, Vertical FOV: 40°, Diagonal FOV: 89°

Lens 4 [email protected]

Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light

Angle Adjustment Pan: 0° to 340°, tilt: -5° to 105°

Supplement Light Range Performance mode: up to 30 m, proactive mode: up to 10 m

Image Enhancement BLC, HLC, 3D DNR

Built-in Microphone Yes, record with audio

Built-in Speaker Yes, two way audio,  audible warning

API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI

Mobile Communication

SIM Card TypeMicroSIM	StandardLTE-TDD, LTE-FDD, WCDMA, GSM
FrequencyEU:  LTE-TDD: Band38/40/41 LTE-FDD: Band1/3/5/7/8/20/28 WCDMA: Band1/5/8 GSM: Band3/5/8 US: LTE-FDD: Band2/4/5/12/13/17/66/71 WCDMA: Band2/4/5 LA: LTE-TDD: Band38/40 LTE-FDD: Band1/2/3/4/5/7/8/12/17/20/28/66 WCDMA: Band1/2/3/4/5/8 GSM: Band2/3/5/8	Uplink and Downlink Data RateCat 4, uplink: 50 Mbps, downlink: 150 Mbps

SIM Card TypeMicroSIM

FrequencyEU:  LTE-TDD: Band38/40/41 LTE-FDD: Band1/3/5/7/8/20/28 WCDMA: Band1/5/8 GSM: Band3/5/8 US: LTE-FDD: Band2/4/5/12/13/17/66/71 WCDMA: Band2/4/5 LA: LTE-TDD: Band38/40 LTE-FDD: Band1/2/3/4/5/7/8/12/17/20/28/66 WCDMA: Band1/2/3/4/5/8 GSM: Band2/3/5/8

Standard LTE-TDD, LTE-FDD, WCDMA, GSM

Uplink and Downlink Data Rate Cat 4, uplink: 50 Mbps, downlink: 150 Mbps

Solar Panel

Photovoltaic panels40W

Angle AdjustmentPan: 0° to 358°, tilt: -40° to 0°

Photovoltaic panels40W

Angle Adjustment Pan: 0° to 358°, tilt: -40° to 0°

Battery

Battery TypeTernary Lithium	Capacity8.4 Ah × 2 packs
Max. Output Voltage12.6 V	Battery Voltage9 V to 12.6 V
Battery LifeMore than 500 cycles	Battery WeightApprox. 1400 g (3.1 lb.)
Operating TemperatureCharging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 55 °C (-4 °F to 131 °F)	Cycle LifetimePerformance mode: 3.6 days, Proactive mode: 6 days, Standby mode: 30 days

Battery TypeTernary Lithium

Max. Output Voltage12.6 V

Battery LifeMore than 500 cycles

Operating TemperatureCharging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 55 °C (-4 °F to 131 °F)

Capacity 8.4 Ah × 2 packs

Battery Voltage 9 V to 12.6 V

Battery Weight Approx. 1400 g (3.1 lb.)

Cycle Lifetime Performance mode: 3.6 days, Proactive mode: 6 days, Standby mode: 30 days

General

HousingCamera: Plastic, solar panel: Metal	ColorWhite
Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port	RS-4851 RS-485 (half duplex)
StorageBuilt-in 64 GB eMMC storage, 50 GB is available for recording. Built-in microSD/SDHC/SDXC Slot, up to 256 GB.	Operating PowerTypical power scenarios: 1.85 W (4G working) Standby scenarios: 40 mW Max. power consumption: 6 W Power Supply:12 VDC ± 25% Power supply interface: Ø5.5 mm coaxial power plug Extened solar panel: four-core aviation connector
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port	Hardware ResetYes
Operating Temperature-20 °C to 50 °C (-4 °F to 122 °F)	Indoor/Outdoor UseIndoor/Outdoor
ProtectionIP65	Dimension (L X W X H)686.6mm × 442.6mm × 760 mm (27.03" × 17.42" × 29.9")
WeightApprox. 11.70 kg (25.8 lb.)	Package Dimension902 mm × 342 mm × 440 mm (35.5" × 13.5" × 17.3")
WeightApprox. 15.01 kg (33.1 lb.)

HousingCamera: Plastic, solar panel: Metal

Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port

StorageBuilt-in 64 GB eMMC storage, 50 GB is available for recording. Built-in microSD/SDHC/SDXC Slot, up to 256 GB.

Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Operating Temperature-20 °C to 50 °C (-4 °F to 122 °F)

ProtectionIP65

WeightApprox. 11.70 kg (25.8 lb.)

WeightApprox. 15.01 kg (33.1 lb.)

Color White

RS-485 1 RS-485 (half duplex)

Operating Power Typical power scenarios: 1.85 W (4G working) Standby scenarios: 40 mW Max. power consumption: 6 W Power Supply:12 VDC ± 25% Power supply interface: Ø5.5 mm coaxial power plug Extened solar panel: four-core aviation connector

Hardware Reset Yes

Indoor/Outdoor Use Indoor/Outdoor

Dimension (L X W X H) 686.6mm × 442.6mm × 760 mm (27.03" × 17.42" × 29.9")

Package Dimension 902 mm × 342 mm × 440 mm (35.5" × 13.5" × 17.3")
